Y-HG1冶金液压缸外形尺寸 更多详情请点击下列系列分类进入！

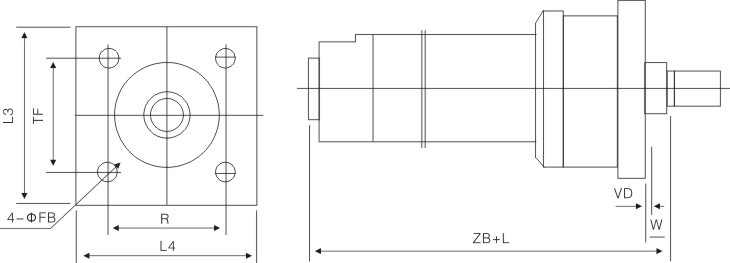

头部长方法兰型液压缸安装联接尺寸
| 缸径D |
W |
ZB |
R |
TF |
VD |
L3 |
L4 |
ΦFB |
| 40 |
16 |
198 |
40.6 |
98 |
3 |
120 |
86 |
9 |
| 50 |
18 |
213 |
48.2 |
116.4 |
4 |
140 |
95 |
11 |
| 63 |
20 |
234 |
55.5 |
134 |
4 |
165 |
115 |
13.5 |
| 80 |
22 |
260 |
63.1 |
152.5 |
4 |
190 |
140 |
17.5 |
| (90) |
23 |
280 |
70 |
168 |
4 |
210 |
170 |
22 |
| 100 |
25 |
310 |
76.5 |
184.8 |
5 |
230 |
185 |
22 |
| (110) |
25 |
320 |
83 |
200 |
5 |
245 |
205 |
22 |
| 125 |
28 |
335 |
90.2 |
217.1 |
5 |
260 |
225 |
22 | |
|
