Y-HG1冶金液压缸外形尺寸 更多详情请点击下列系列分类进入！

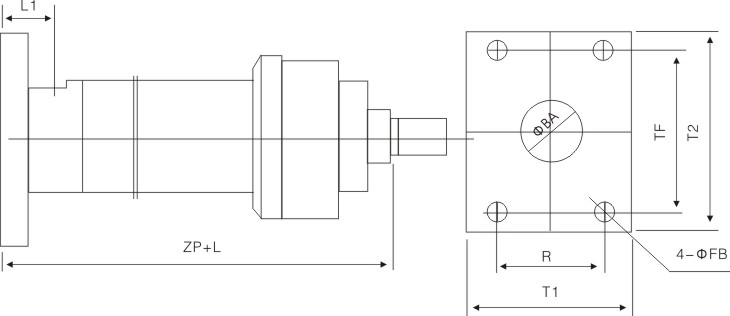

尾部长方法兰型液压缸安装联接尺寸
表7
| 缸径D |
ZF |
R |
TF |
T2 |
T1 |
L1 |
ΦBA |
ΦFB |
| 40 |
206 |
40.6 |
98 |
120 |
65 |
42 |
20 |
9 |
| 50 |
225 |
48.2 |
116.4 |
140 |
75 |
38 |
30 |
11 |
| 63 |
249 |
55.5 |
134 |
164 |
85 |
50 |
38 |
13.5 |
| 80 |
282 |
63.1 |
152.5 |
200 |
100 |
68 |
55 |
17.5 |
| (90) |
302 |
70 |
168 |
210 |
115 |
75 |
55 |
22 |
| 100 |
332 |
76.5 |
184.8 |
230 |
120 |
79 |
68 |
22 |
| (110) |
342 |
83 |
200 |
245 |
130 |
82 |
60 |
22 |
| 125 |
357 |
90.2 |
217.1 |
260 |
155 |
82 |
80 |
22 |
|
|
