Y-HG1冶金液压缸外形尺寸 更多详情请点击下列系列分类进入！

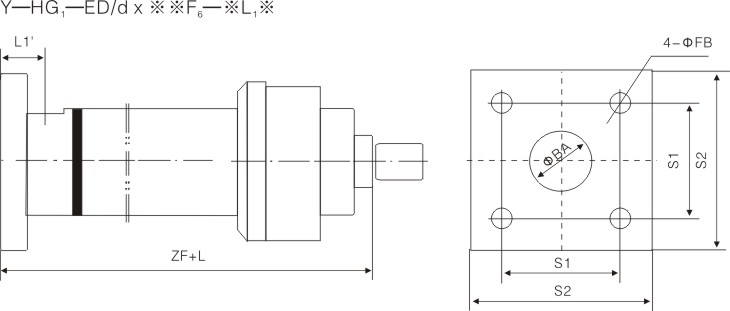

尾部方法兰型液压缸安装联接尺寸
| 缸径D |
ZF |
S1 |
Φ2 |
L1 |
ΦBA |
ΦFB |
| 40 |
206 |
65 |
90 |
42 |
20 |
9 |
| 50 |
225 |
80 |
110 |
38 |
30 |
11 |
| 63 |
249 |
95 |
130 |
50 |
38 |
13.5 |
| 80 |
282 |
110 |
150 |
68 |
55 |
17.5 |
| (90) |
302 |
120 |
165 |
75 |
55 |
22 |
| 100 |
332 |
135 |
180 |
79 |
68 |
22 |
| (110) |
342 |
145 |
190 |
82 |
60 |
22 |
| 125 |
357 |
160 |
205 |
82 |
80 |
22 | |
|
